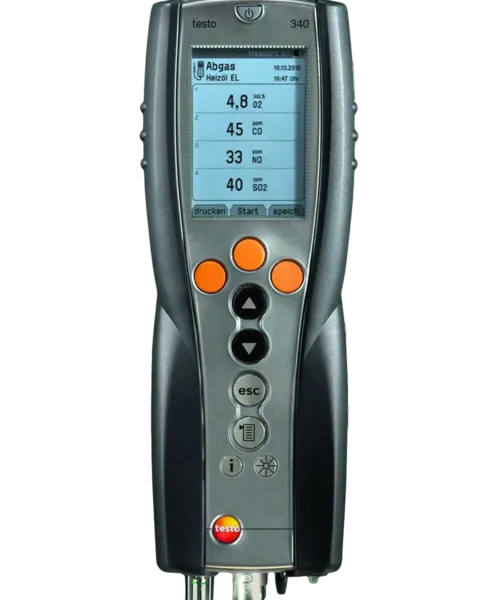

The Testo 340 provides the information to understand your process, enabling you to make informed combustion decisions. It is the ideal tool to confirm proper set-up, tune your boiler, and help identify emission problems.
Rugged, reliable, and accurate, the 340 combines the portability of a small gas analyzer with the measuring capability and features normally only found in much larger analyzers, including the ability to measure up to four gases simultaneously, 18 pre-programmed fuels and 10 user-defined fuels, and and integrated pressure sensor to measure draft and differential pressure.
The Testo 340 is the ultimate in simple, reliable testing. Get pinpoint accuracy in a small, lightweight, and portable package. Simplify your testing - choose Testo.
4-gas simultaneous measuring capability
Field-replaceable pre-calibrated gas sensors mean zero downtime
18 pre-programmed fuel parameters, plus 10 user-defined fuels
Automatic Sensor Protection keeps prevents analyzer damage
Integrated pressure sensor measures draft or differential pressure
Measure exhaust gas and flow velocity for accurate flow readings
Simple, intuitive operation and rugged construction
EASIER ENGINE TUNING
Stationary engine exhaust, when uncontrolled, can have very wide concentration ranges. As a result, both CO and NO2 can fluctuate significantly. The on-board dilution system and the replaceable interference filters keep the sensors secure and your readings accurate.
The 340 measures both NO and NO2 for perfect lean-burn engine set-up. High exhaust pressures and heavy particulate loading are easily controlled with the special pressure relief valve (standard) and sintered particulate filters (optional Engine Probe required).
In addition, the patented dilution system extends sensor ranges (specifically needed for engine testing) and provides greater sensor protection. It also gives a true CO measurement, while eliminating the cross-sensitivity problems other analyzers exhibit in their CO measurements.
No more guessing, no more inaccurate measurements. The advanced onboard diagnostics system monitors system performance in real time, allowing for instant notification of instrument faults or issues. Simply go to the diagnostics screen to see instrument status, ensuring you get an accurate reading the first time, every time.
Automatic leak detection checks probe hose and gas path integrity
Check battery status, including time remaining before recharge
Review the pump flow rate (liters/min)
Error statuses with description and remedial actions required
Find last service/maintenance date
Graphic representation of sensor calibration data
Condensate trap water level indicator
From combustion tuning to compliance testing data, easyEmission provides extraordinary data management capabilities. See the power of an intuitive user interface and exclusive features, including:
Real-time monitoring window, allowing testing in the background
Export data to Microsoft Excel or create a PDF
Clear, graphical information display
Generate testing reports
Calculate maximum, minimum, and average values
User-defined reports and printouts
Manage data by customer and site location
Control your 340 via Bluetooth
From engine testing under high particulate loads, to burner testing in extreme heat, Testo has a probe for your application,and every probe and hose assembly is constructed of the highest quality material.
Cam-lock connection prevents accidental disconnection
Heat-resistant Teflon hoses come standard
Probe lengths from 12-28 inches standard
Optional hose extensions give 25-foot reach
And for extreme tuning applications, Testo offers probe lengths up to 9 feet and temperature resistance up to 3200°F. For your testing, trust the quality and accuracy of Testo.
